Signal Peptide Database

Signal Peptide Database - Drosophila melanogaster

Entry Details

26841

Source Database

UniProtKB/Swiss-Prot

UniProtKB/Swiss-Prot Accession Number

P20241 (Created: 1991-02-01 Updated: 2008-12-16)

UniProtKB/Swiss-Prot Entry Name

NRG_DROME

Protein Name

Neuroglian

Gene

Nrg

Organism Scientific

Drosophila melanogaster

Organism Common

Fruit fly

Lineage

Eukaryota
  Metazoa
    Arthropoda
      Hexapoda
        Insecta
          Pterygota
            Neoptera
              Endopterygota
                Diptera
                  Brachycera
                    Muscomorpha
                      Ephydroidea
                        Drosophilidae
                          Drosophila
                            Sophophora

Protein Length [aa]

1302

Protein Mass [Da]

143618

Features

TypeDescriptionStatusStartEnd
signal peptide         1   23
chain   Neuroglian      24   1302
disulfide bond      potential   59   111
disulfide bond         625   706
transmembrane region      potential   1139   1154
topological domain   Extracellular   potential   24   1138
topological domain   Cytoplasmic   potential   1155   1302
domain   Ig-like C2-type 1      29   133
domain   Ig-like C2-type 2      134   225
domain   Ig-like C2-type 3      245   330
domain   Ig-like C2-type 4      339   426
domain   Ig-like C2-type 5      432   524
domain   Ig-like C2-type 6      521   610
domain   Fibronectin type-III 1      611   706
domain   Fibronectin type-III 2      713   809
domain   Fibronectin type-III 3      815   911
domain   Fibronectin type-III 4      913   1013
domain   Fibronectin type-III 5      1022   1114
glycosylation site   N-linked (GlcNAc...)   potential   182   182
glycosylation site   N-linked (GlcNAc...)      198   198
glycosylation site   N-linked (GlcNAc...)      411   411
glycosylation site   N-linked (GlcNAc...)   potential   448   448
glycosylation site   N-linked (GlcNAc...)      652   652
glycosylation site   N-linked (GlcNAc...)      683   683
glycosylation site   N-linked (GlcNAc...)   potential   821   821
glycosylation site   N-linked (GlcNAc...)   potential   1125   1125
strand         619   625
strand         627   635
strand         646   656
strand         661   668
strand         672   677
strand         680   692
strand         706   708
strand         721   723
strand         730   733
strand         744   746
strand         748   757
strand         763   767
strand         774   777
strand         785   794
strand         806   812
helix         739   741
splice variant   (in isoform A)      0   0
splice variant   (in isoform A)      1240   1302

SP Length

----+----1----+----2----+----3----+----4----+----5

Signal Peptide

MWRQSTILAALLVALLCAGSAES

Sequence

MWRQSTILAALLVALLCAGSAESKGNRPPRITKQPAPGELLFKVAQQNKE
SDNPFIIECEADGQPEPEYSWIKNGKKFDWQAYDNRMLRQPGRGTLVITI
PKDEDRGHYQCFASNEFGTATSNSVYVRKAELNAFKDEAAKTLEAVEGEP
FMLKCAAPDGFPSPTVNWMIQESIDGSIKSINNSRMTLDPEGNLWFSNVT
REDASSDFYYACSATSVFRSEYKIGNKVLLDVKQMGVSASQNKHPPVRQY
VSRRQSLALRGKRMELFCIYGGTPLPQTVWSKDGQRIQWSDRITQGHYGK
SLVIRQTNFDDAGTYTCDVSNGVGNAQSFSIILNVNSVPYFTKEPEIATA
AEDEEVVFECRAAGVPEPKISWIHNGKPIEQSTPNPRRTVTDNTIRIINL
VKGDTGNYGCNATNSLGYVYKDVYLNVQAEPPTISEAPAAVSTVDGRNVT
IKCRVNGSPKPLVKWLRASNWLTGGRYNVQANGDLEIQDVTFSDAGKYTC
YAQNKFGEIQADGSLVVKEHTRITQEPQNYEVAAGQSATFRCNEAHDDTL
EIEIDWWKDGQSIDFEAQPRFVKTNDNSLTIAKTMELDSGEYTCVARTRL
DEATARANLIVQDVPNAPKLTGITCQADKAEIHWEQQGDNRSPILHYTIQ
FNTSFTPASWDAAYEKVPNTDSSFVVQMSPWANYTFRVIAFNKIGASPPS
AHSDSCTTQPDVPFKNPDNVVGQGTEPNNLVISWTPMPEIEHNAPNFHYY
VSWKRDIPAAAWENNNIFDWRQNNIVIADQPTFVKYLIKVVAINDRGESN
VAAEEVVGYSGEDRPLDAPTNFTMRQITSSTSGYMAWTPVSEESVRGHFK
GYKIQTWTENEGEEGLREIHVKGDTHNALVTQFKPDSKNYARILAYNGRF
NGPPSAVIDFDTPEGVPSPVQGLDAYPLGSSAFMLHWKKPLYPNGKLTGY
KIYYEEVKESYVGERREYDPHITDPRVTRMKMAGLKPNSKYRISITATTK
MGEGSEHYIEKTTLKDAVNVAPATPSFSWEQLPSDNGLAKFRINWLPSTE
GHPGTHFFTMHRIKGETQWIRENEEKNSDYQEVGGLDPETAYEFRVVSVD
GHFNTESATQEIDTNTVEGPIMVANETVANAGWFIGMMLALAFIIILFII
ICIIRRNRGGKYDVHDRELANGRRDYPEEGGFHEYSQPLDNKSAGRQSVS
SANKPGVESDTDSMAEYGDGDTGQFTEDGSFIGQYVPGKLQPPVSPQPLN
NSAAAHQAAPTAGGSGAAGSAAAAGASGGASSAGGAAASNGGAAAGAVAT
YV

Original

----+----1----+----2----+----3----+----4----+----5

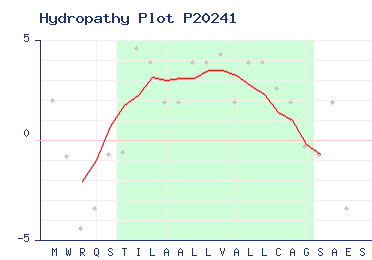

Hydropathies
